Takeuchi

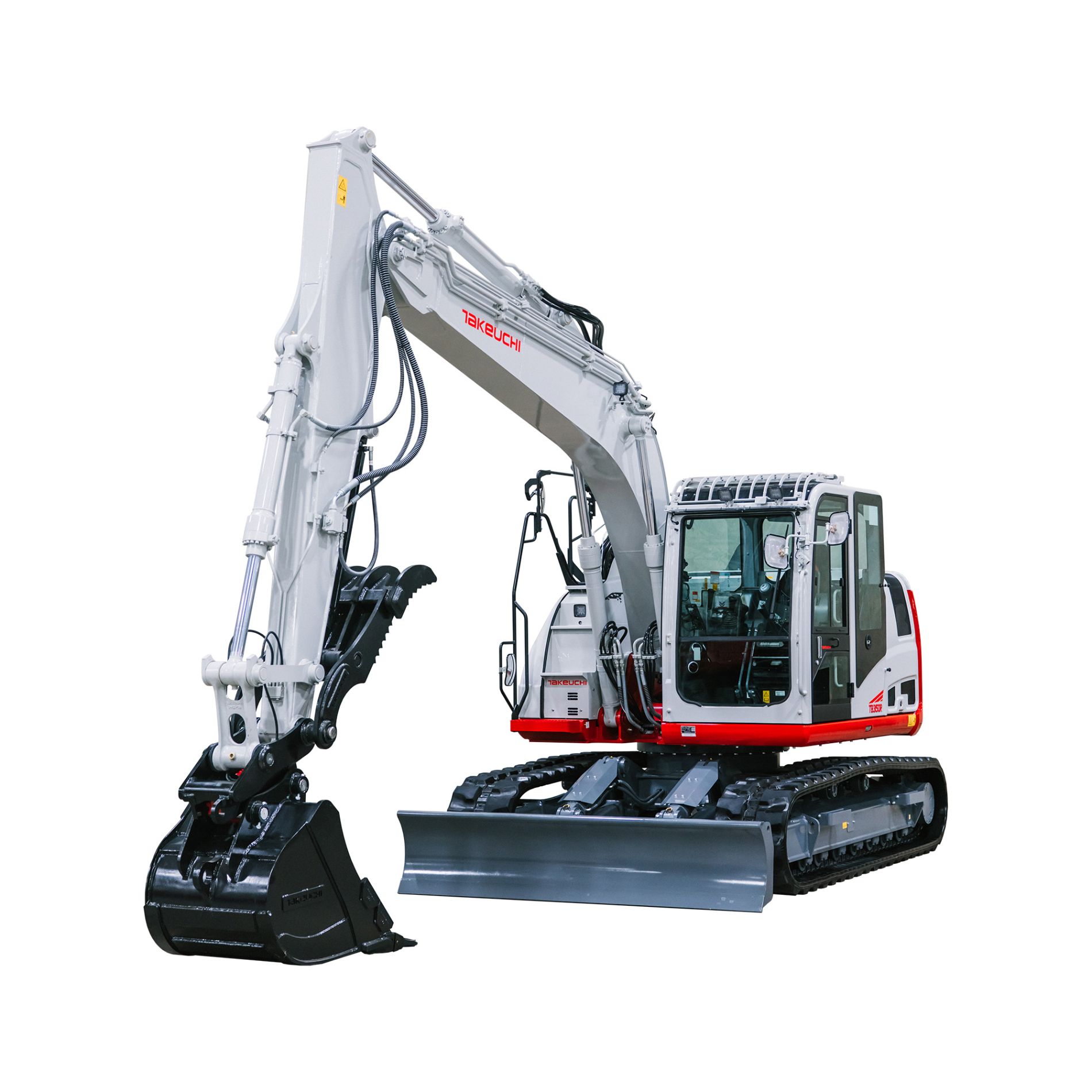

15T Medium Digger Excavator TB3150R

The Takeuchi TB3150R is the next evolution in Takeuchi’s 15 tonne excavator line-up. Built with a swing boom system that provides versatility, stability and a strong digging force, the TB3150R delivers the performance, comfort and control contractors need for demanding civil, drainage, infrastructure and earthmoving work.



Description
Specifications

KEY FEATURES

Fixed conventional boom with reduced tail swing

Reduced tail swing undercarriage aids safe operation near structures
Yanmar Stage V engine, delivering approximately 114 HP (85 kW)
Automotive-inspired cab design with 8-inch colour touchscreen with jog dial, displaying diagnostics, camera feed, and machine settings
Electro-hydraulic (EH) controls for travel, dozer blade, and boom swing, complemented by pilot-operated joysticks

Description

The TB3150R builds on the proven performance of the TB2150R while introducing Takeuchi’s latest 300-series design, improved operator comfort and expanded machine technology. Its fixed boom system provides great stability and strong arm digging force, making it well suited to heavier digging, lifting and attachment work.

Inside the cab, operators get a more modern and comfortable workspace, including an 8” colour touch screen display, jog dial controls, automatic climate control, Bluetooth DAB radio, heated air suspension seat and excellent visibility. The 270-degree camera and LED lighting package help improve awareness around the machine on busy worksites.

The TB3150R is powered by an 85 kW engine and uses DOC, DPF and SCR exhaust after-treatment to meet modern emissions requirements. Standard and ECO working modes allow operators to match performance to the job, while the hydraulic system delivers up to 224 L/min high-flow performance through AUX 1 for demanding attachments.

For contractors running a wide range of tools, the TB3150R offers strong auxiliary capability, with AUX 1, AUX 2 and AUX 3 standard, AUX 4 available, and an optional independent AUX 4 package with multi-functional grips. Optional features include a dozer blade, blade float, steel crawler options, OPG Level II guards, 2-piece boom and hydraulic package upgrades.
